new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
hello all! i recently got a 1982 cx500 custom.
I purchased a 1978 standard tank to replace the custom tank. I noticed that the mounts must be different. Can anyone verify this? maybe its a difference in the years instead of the models.
Other issue, the bike had no coolant in it when i picked it up. i filled it up and it started coming out of the weeper hole on the waterpump. the gear on the water pump isn’t loose, and doesn’t have any play. so i filled the weeper hole with sealant on the external side. It now doesn’t leak, and seems to be cooling fine. anyone had this happen and what is the risk i’m running by sealing that hole?
well i’m performing mods to the bike to make it have a more cafe racer appearance and to make it feel a little sportier. I have move the pegs up about 2” and back about 3” and made a new shifter and a new brake pedal. I have angled the megaphones up to follow the lines of ther rear of the frame. they end pretty much right beside where the tail light would be. then i wrapped them with header wrap. i’m getting excited about this project!
I’ll post pics soon.
Shaun
Report 12-14-2007, 3:16 PM
DaWei
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 11-25-2006
Northfield, Atlantic County, NJ
Posts 589
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
pampadori wrote:…. i filled the weeper hole with sealant on the external side. It now doesn’t leak, and seems to be cooling fine. anyone had this happen and what is the risk i’m running by sealing that hole?….
The weeper hole is there for a reason: it allows coolant that leaks from the mechanical seal to ESCAPE rather than being forced thru the oil seal into the crankcase. STRONGLY suggest you remove the sealant IMMEDIATELY. Then check the crankcase for water contamination. You may need to do an oil and filter change…..
There are multiple discussions of mech seal replacement procedures in these pages. The “proper” way requires removing the engine, but there’s a method explained by Shep for in situ replacement.Welcome aboard!Dave in NJ
‘80 CX500 C – needs Triple Bypass – but TITLED!
‘78 CX500 – Working on NJ DMV Title
Where’s the BIRTH CERTIFICATE?
Report 12-18-2007, 3:55 PM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
i think you just saved my good name! i’ was going to sell this thing in next couple months, and figured this weeper hole was on the same side where the impeler is, not on the inside. i thought, why is this hole here? doesn’t make any sense. I couldn’t halfway see where it was to begin with….but anyway, i went to the shop today to look at the oil, and sure enough there was a small amount of froth on the top of the dipstick. so i’m assuming a trace amount of water has gotten in the oil from this common problem.
I’ve seen mention of a yamaha part that can be used and is cheaper, then i saw a thread saying not to use it. whats the consensus on this?
i’ve found the honda part number 3849478-001 for about $66 at bikebandit.com
This is the part i need right?
Report 12-18-2007, 4:53 PM
fll1441
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 11-06-2006
Fort Lauderdale, FL
Posts 976
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Shaun,I also have a 1982 CX500 Custom and I used the Yamaha part to replace my mechanical seal. It cost about $18. But, I didn’t press it in. I removed the guts and glued them into the old cup. The Yamaha part number is YA11H-12438-10-00.Here is a link to Shep’s instructions for replacing the seal:http://www.geocities.com/sheppola/cx500/mechseal.aspxAnd here’s a thread that may also help: http://choppercharles.com/cs/forums/10938/ShowPost.aspx
Good luck.1982 CX500 Custom
Report 12-19-2007, 1:40 PM
Abes_CW
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 04-17-2007
saskatoon
Posts 3,037
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
Yes yes, this is the way to go!
1983 GL650iHad 4 CX/GL’s at one point this year, down to one, next spring is another adventure!age 38 (29 plus tax)
Report 12-21-2007, 12:33 PM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/

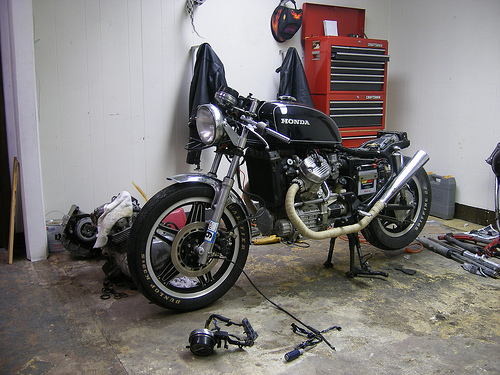

here is a pic of my 1982 cx500c. (i’m not entirely sure that the image tags are going to work)
i made the seat, the exhaust, the rear sets, the handlebars (using the stock bar metal) and put on a standard tank. Its a work in progress. I’m going to be selling it soon after i paint everything candy red with some stripes. probably going to be about another month or two before its done. i should get the mechanical seal in after christmas and some new tires. comments welcome!
Shaun
Report 12-21-2007, 3:08 PM
dozer1
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 05-26-2007
Frederick, Maryland
Posts 612
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ sick bike man, i really like the cafe racer look like that.cant wait to see it completed.How did you do the new rear end?did you just hack it off?1980 CX500 Ratbike “Stella”1979 CX500 Deluxe(Parts)Dozer1 AKA Snowplow
http://www.youtube.com/watch?v=6TK5VY90ILs&feature=related
Report 12-21-2007, 4:50 PM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
dozer1 wrote:sick bike man, i really like the cafe racer look like that.cant wait to see it completed.How did you do the new rear end?did you just hack it off?
unbolted the fender, cut the fender supports off just aft the cross brace. hand bent some sheetmetal and welded it together, grinded down the welds. thats about it. Glad you like it! so do i. Everyone says the cx500 is a waste of time for what i was going to do to it. esp the custom. but i dig it. and they are cheap usually. i just hate the forks and headlight. they are so long, and i can’t lower it anymore without ditching the stock headlight brackets. but i really don’t want to put a whole lot more money in to it.
Report 12-21-2007, 5:16 PM
Jay in NYC
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 04-29-2007
Brooklyn, NY
Posts 153
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Beautiful! I would love to get a close up of the rear-sets, to see how you made them. Looks great!1978 CX 500 MAC 2-1Drag BarsCafe headlight/turn signals
Report 01-11-2008, 3:04 PM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
so in the link above about doing the waterpump seal….
it says there is a 10mm thrust washer. wtf is this and does anyone have a picture of it? i have the crush washer, but i didn’t see anything else when i removed my crapped out seal from the cup.
also any tips for removing the needed part from the yamaha part? the first one ripped on me. on my second now and don’t want to bugger it up.
Report 01-11-2008, 6:04 PM
fll1441
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 11-06-2006
Fort Lauderdale, FL
Posts 976
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ I used a Dremel tool to make a few cuts and peel the cup back. After that, I used some heat to soften the adhesive and a thin, flat screw driver to gently pry the new seal out. This thread has a good picture of how to cut the cup (about 6 posts from the end):http://choppercharles.com/cs/forums/10938/ShowPost.aspx Check the impeller shaft to see if the washer is still on there. The link below has a couple of pictures of the thrust washer (about half way down the page):http://www.elsham.pwp.blueyonder.co.uk/cx500/mechanical_seal/
1982 CX500 Custom
Report 01-11-2008, 6:36 PM
DaveNearAtlanta
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 03-03-2006
Lawrenceville, GA
Posts 500
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
pampadori wrote:…it says there is a 10mm thrust washer. wtf is this and does anyone have a picture of it?…also any tips for removing the needed part from the yamaha part? the first one ripped on me. on my second now and don’t want to bugger it up…

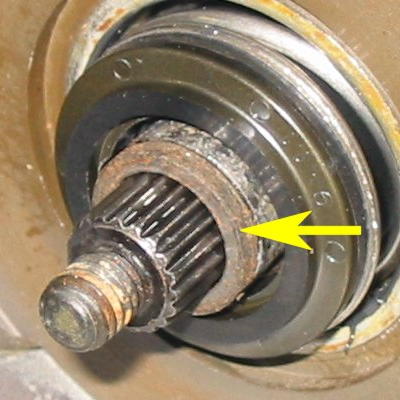

This photo shows the 10mm thrust washer. There is some rust discoloration on this one.
I haven’t tried Shep’s method with a Yamaha seal, but I have with a Honda seal. His tip about using an open flame to heat the metal cup to free the innards worked well.I used a propane torch because it was what I had and was convenient. Obviously, one should go sparingly with the heat but once it gets hot enough, the inner part releases very quickly with no fuss.
My Web Site1982 GL5001983 GL650This User ID is no longer used. DaveF is my new User ID.
Report 01-14-2008, 11:01 AM
Abes_CW
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 04-17-2007
saskatoon
Posts 3,037
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
pampadori wrote:
also any tips for removing the needed part from the yamaha part? the first one ripped on me. on my second now and don’t want to bugger it up.
I tried boiling mine to free it up, and was unsuccessful.
I then used a bic lighter to heat up the underside of the cup, probably no more than 20 seconds, and the seal very easily popped right out.
1983 GL650iHad 4 CX/GL’s at one point this year, down to one, next spring is another adventure!age 38 (29 plus tax)
Report 01-16-2008, 9:45 AM
secaII4884
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 04-20-2007
Southern Il (SIUC)
Posts 32
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ How did you get the exhaust mounted like that? It looks amazing. 1979 CX500 (needs a lot of work)
2005 FZ1 (visit yamahaFZ1oa.com)
Report 01-25-2008, 10:50 AM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
so i got another yamaha seal. this time i put it in 10mm of boiling water for 4 minutes. after that i drained 3mm of water and boiled it more just until the water all evaporated. the cup and rubber were already separated by that point! worked like a charm.
installed it and no leaks! replacing that cup is for the birds.
as for the exhaust, i removed the cross tube and then bent some pipe and welded it to the megaphone and the other end to the header. its not chrome like the stock parts, so i wrapped it in header wrap.
all the body is off now getting painted cherry red. i’m painting the radiator covers too. i think it will look pretty good! i’ll post pics when its done, and try to get one you guys to buy it!
Report 02-05-2008, 12:27 PM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/

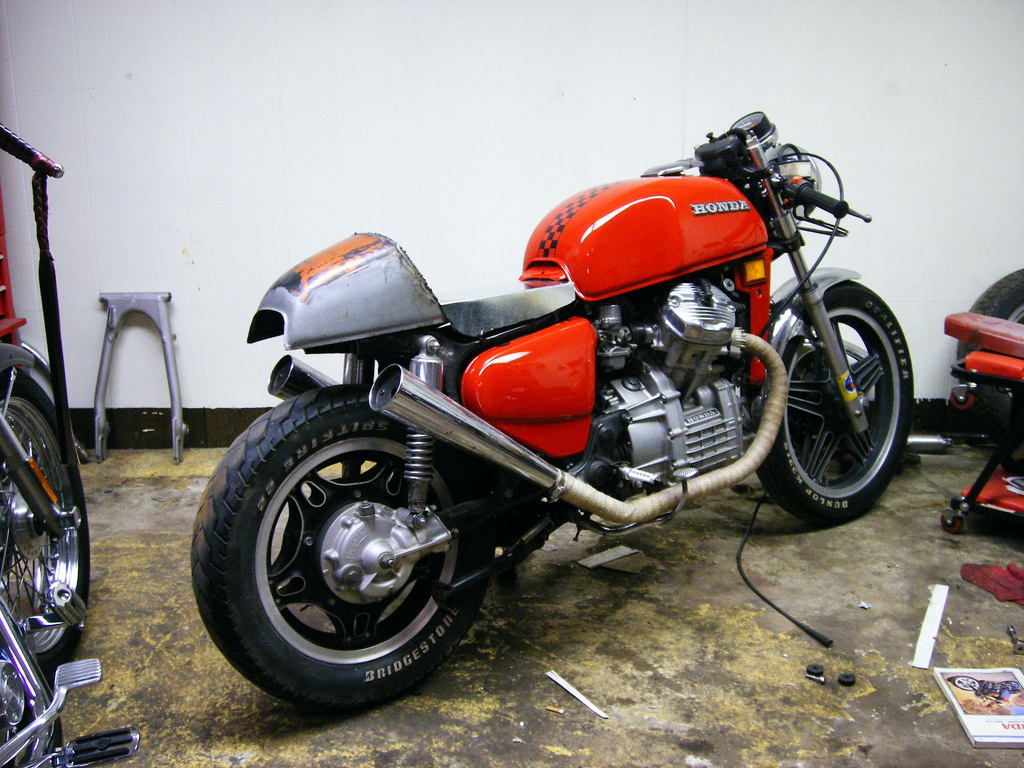

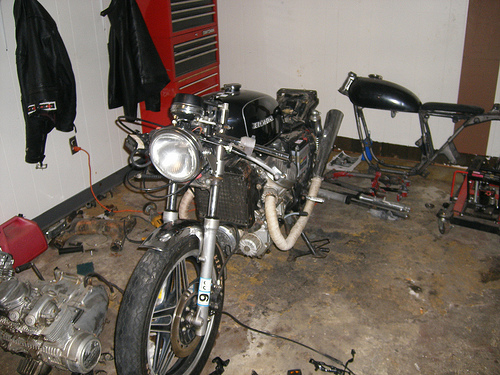

so a little more progress. body work is getting painted right now. i added some clip ons and messed with the headlight and gauges. here is a pic…

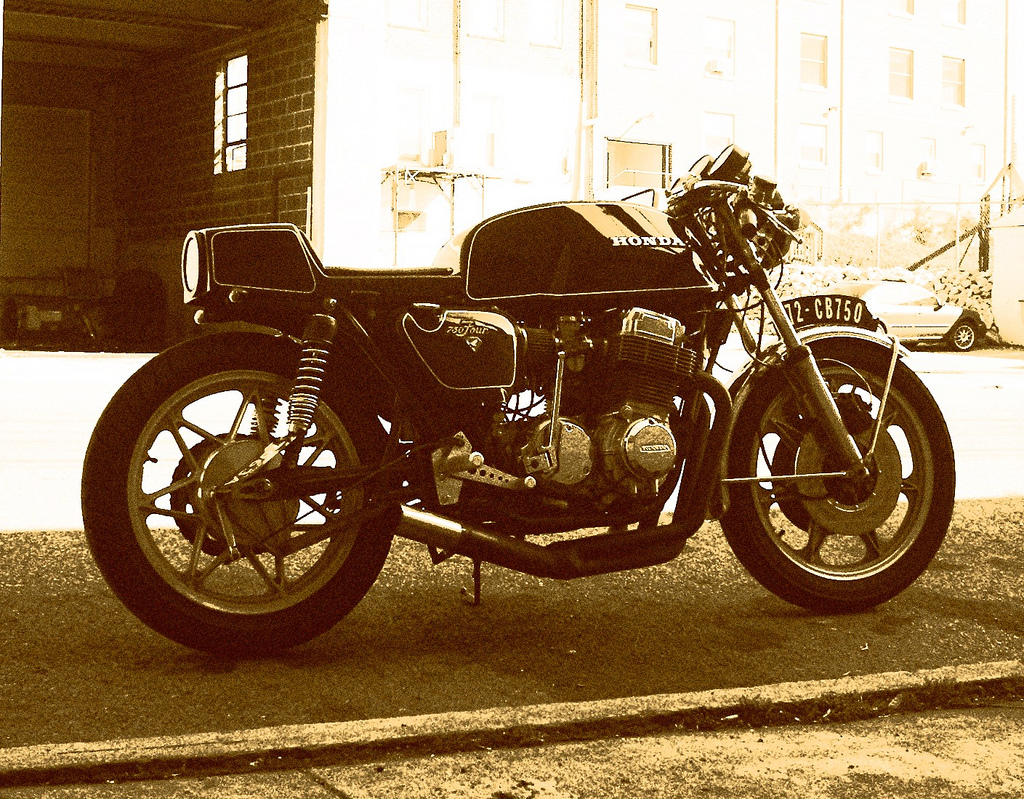

that is a cb750 tank i had laying around. not going to use it on this bike, but wanted to see the bike with a tank on it. the actual tank and seat should be back on in a few weeks. painters take thier time!
Report 02-05-2008, 5:03 PM
Anonymous
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Lookin great man! do you think you could take a picture of you on the bike so we could see what the riding position is with the clip ons? Im considering getting myself a set…
02-06-2008, 5:26 AM
Synapse
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 02-05-2008
Ipswich, United Kingdom
Posts 18
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
Hi Shaun
Really like what you have done with your pipes…..
Like the Cafe Racer style as well, that’s what i initially wanted to do with mine but then she evolved, however i am so besotted with the CX500’s that once she’s done and i have had some use out of her, she will be sold on and another one bought in her place also to be modified into whatever creation she tells me she wants to be.
i just noticed that i keep calling my bike a she……teehee i guess cause she’s a beauty!
good luck with your build and you are doing a good job!
Synapse
Don’t just dream your life, live your dreams 😉
Report 02-06-2008, 6:14 PM
Shep
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 01-30-2007
UK.2x1980CX500A
Posts 7,651
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
It looks awesome for a CX
Change the fork fluid from the crappy ATF Honda used to 20w fork oil(dead cheap) and with those clip-ons should handle way better than you think it would
My Music
http://www.reverbnation.com/pauldouglas/
Join Just In Case 🙂
http://globalcxglvtwins.hostingdelivered.com/ Id quot circumiret, circumveniat
Report 03-21-2008, 5:04 AM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/

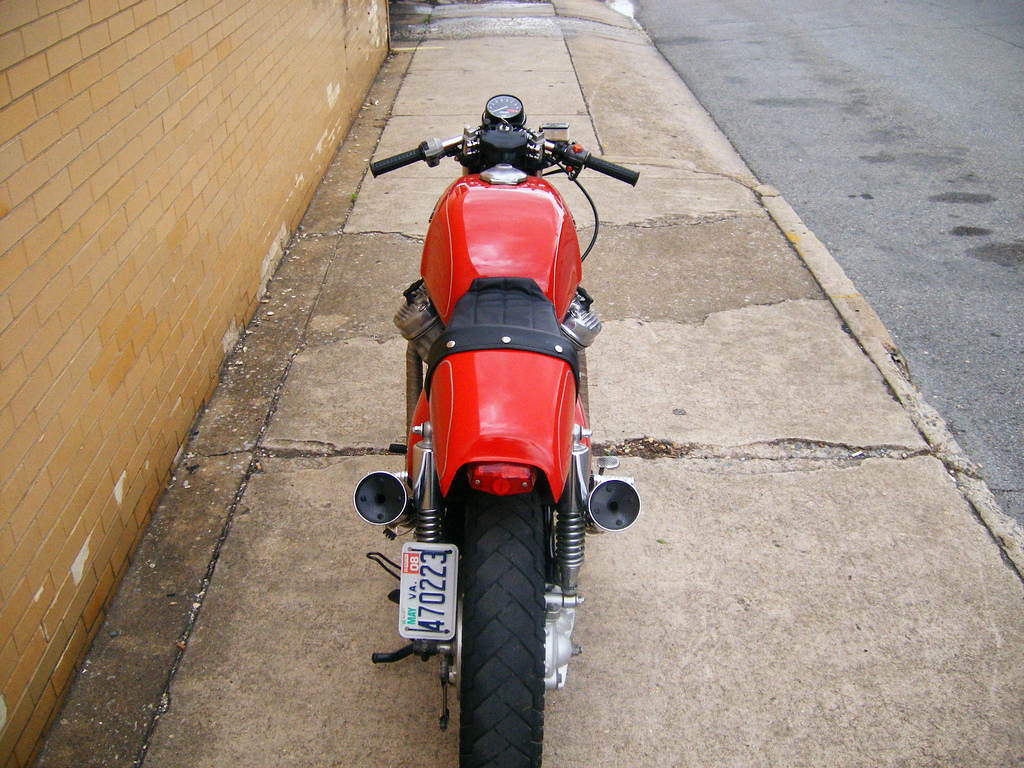

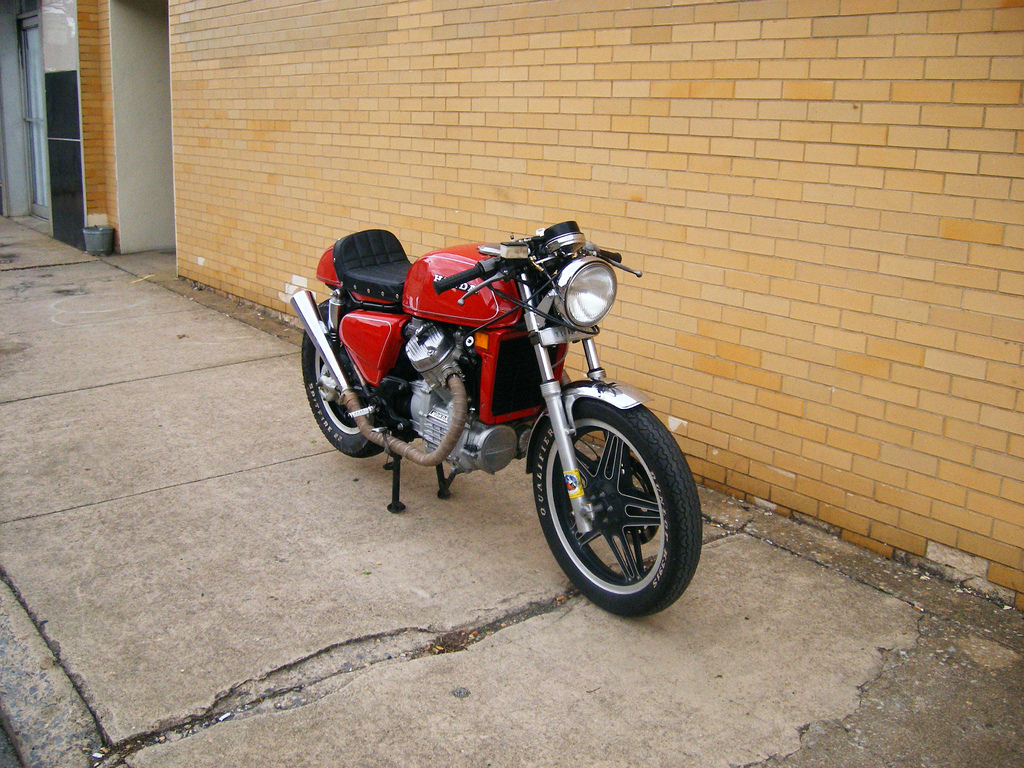

been a very long time since i had any progress on this thing. but i did some paint work the last couple days. plus i’ve decided my seat wasn’t right so i started to make another one using a cb360 fuel tank as the hump.
the paint turned out near perfect! i didn’t need to wet sand, or buff it. just let it dry. My uncle helped me, he’s been a painter for 30 years. i think it shows! so next step is finish the seat and work a norton tail light in there. maybe some tires and then off to ebay.
Report 03-21-2008, 6:29 AM
fll1441
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 11-06-2006
Fort Lauderdale, FL
Posts 976
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ The paint does look great. Your bike is coming along nicely. Thanks for posting the pictures.1982 CX500 Custom
Report 04-05-2008, 2:55 PM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/

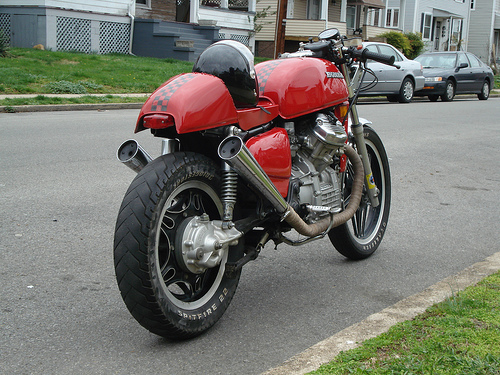

almost done! getting the seat upholstry done this week.
Report 04-08-2008, 1:53 AM
Shep
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 01-30-2007
UK.2x1980CX500A
Posts 7,651
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Looking good My Music
http://www.reverbnation.com/pauldouglas/
Join Just In Case 🙂
http://globalcxglvtwins.hostingdelivered.com/ Id quot circumiret, circumveniat
Report 04-08-2008, 5:28 AM
SeatSkins
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 04-16-2007
Harrisburg, PA
Posts 179
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Nice work! Really digging the looks of it!.If I ever get my hands on another CX, I may have to do the Cafe thing…1980 CX500 Deluxe -“Ugly Bob” 1981 CB650 chopper in progress – “Low Budget All-Star”
1983 Harley-Davidson Sportster XLX 1000
Report 04-08-2008, 2:02 PM
Anonymous
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ so what should i ask for this bike? i saw a realy nasty cx500 with clubman bars on it and a aftermarket seat sell on ebay for $450 the other day. it sorta hurt to see it sell for so cheap. but i have no idea what i should ask for this one. it runs great and doesn’t leak anything. it will never be a race bike, but it certaintly looks unique. what would be fair? does anyone here have any interest?
04-08-2008, 2:11 PM
Ryan
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 09-15-2007
Lethbridge, Ab, Canada
Posts 105
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Not sure one that one, but I’d defo be interested in a seat pan like that…if you had to guesstimate what would you value one at? In primer not painted all pretty like that.1979 CX500D
1980 CB750f
Report 04-10-2008, 6:02 PM
dozer1
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 05-26-2007
Frederick, Maryland
Posts 612
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
A CX that cool looking would be a shame to sell, its not going to fetch the price its worth….keep it!
1980 CX500 Ratbike “Stella”1979 CX500 Deluxe(Parts)Dozer1 AKA Snowplow
http://www.youtube.com/watch?v=6TK5VY90ILs&feature=related
Report 04-10-2008, 6:49 PM
tntchitwood
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 03-02-2008
Pine Knot, KY
Posts 511
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ I second that‘82 Silverwing Chopper’02 750 Shadowhttp://choppercharles.com/cs/forums/29599/ShowPost.aspx
Report 04-10-2008, 9:47 PM
Lance Portal Reptiles
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 04-09-2008
Oregon
Posts 53
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ pampadori…im going this with my bike…question, you have a pic of the levers and stuff????, i have a proble with the break res. at an angle..thanks..lpCafe (Soon) 79 CX500D
Lance Portal Reptiles
Report 04-10-2008, 9:56 PM
Lance Portal Reptiles
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 04-09-2008
Oregon
Posts 53
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ and, one more thing……what speedo. did you use…Cafe (Soon) 79 CX500D
Lance Portal Reptiles
Report 04-11-2008, 12:28 PM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
thats the only one i have showing the brake resevoir at all. where are you having issues? i’m going to make a custom brake line for this bike about 8 inches shorter. I’ll be making it stainless braided and i’m going to make some stock length too anyone that wants one can purchase them. i’ll be asking around $35-$45 for them. i’ll be able to make them longer for guys with longer forks too.
i’m not using a speedometer. Just a tachometer. racers think to much when they know how fast they are going. and not that this is a racer, its a omage to them i guess so…no speedo. actually it just looks cleaner with one gauge and i’d rather not blow the motor then not know how fast i’m going.
I like the bike, and i’d like to keep it but this is how i make money to fund future projects. so she’s gotta go sometime soon. i saw a couple cx500’s on ebay this week fetch around $1000. i’d like to get $2500 for it, but i’m thinking $1500 is more in line.
Report 04-12-2008, 10:53 AM
Ryan
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 09-15-2007
Lethbridge, Ab, Canada
Posts 105
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Too bad you’re so far away. I’d gladly pay $1500 for it….What are the chances you would be interested in making another seat pan like that? What do you think it would be worth?1979 CX500D
1980 CB750f
Report 04-12-2008, 11:36 AM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
Ryan wrote:Too bad you’re so far away. I’d gladly pay $1500 for it…. What are the chances you would be interested in making another seat pan like that? What do you think it would be worth?
well, i had to build a little min-frame under it to raise the seating area about 3 inches. so you would need to do the same, the cx just has such a low frame where the seat attaches, you have to raise it up somehow.
i wouldn’t make any money if i made them to sell. my price would have to be around $200. but you can easily make one. you need an old gas tank, some 1/16th sheetmetal, and a welder that can be adjusted to not just melt thru. and a rotary tool with cutoff wheels (or something to cut the tank and sheet metal with)
bending the sheet metal is easy. just use the edge of a workbench or table.
sheetmetal is about $12
gas tank, ebay for around $40-$80 with shipping.
the square tube for building the seat frame is about $10.
for me its easier then doing fiberglass.
give it a shot, you will suprise yourself!
Report 04-29-2008, 9:42 AM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
well its done. I got the seat cover made, added about an inch of foam. Lengthened the exhausts 2” on each side so my heels would stop melting on the mufflers. I put bigger jets in for the exhaust finally. I ditched the black checkered board and put on some silver pin stripes. Then i took some pictures….
i’m listing it on ebay next sunday. If anyone wants to track it. I appreciate all the tips and help you guys gave me!
Shaun
Report 04-29-2008, 6:32 PM
tntchitwood
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 03-02-2008
Pine Knot, KY
Posts 511
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ The pin stripe is a little “classier” if that’s the word I am looking for. Good luck with the auction. Hope it goes to a good home.‘82 Silverwing Chopper’02 750 Shadowhttp://choppercharles.com/cs/forums/29599/ShowPost.aspx
Report 04-29-2008, 7:07 PM
Exothermia
Joined on 04-18-2008
Posts 116
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ That is definitely the best CX conversion I’ve ever seen. Awesome work.
Report 04-29-2008, 7:19 PM
Panther
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 05-09-2006
Las Vegas, NV
Posts 1,264
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Wow.Great Job!Peace & Light>^..^<……….’83 GL650swi “My Little Grey Lady“‘82 GL500swi parts bike’78 DT175
‘86 LS650 Milady’s bike
Report 05-04-2008, 7:09 PM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
well its listed now and at $.99 so have a bid if you feel lucky!
Report 05-04-2008, 7:48 PM
dozer1
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 05-26-2007
Frederick, Maryland
Posts 612
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Beautiful worksmanship. Hope you get what you deserve for it.1980 CX500 Ratbike “Stella”1979 CX500 Deluxe(Parts)Dozer1 AKA Snowplow
http://www.youtube.com/watch?v=6TK5VY90ILs&feature=related
Report 05-05-2008, 6:37 PM
Anonymous
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ this thread is what convinced me to get my cx. btw, what forks did you end up using?
05-05-2008, 7:20 PM
wridley
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 06-28-2007
Didsbury, AB, Canada
Posts 246
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ I see that the current bid is $1500.00!!Willy1983 CX650E !! Newest addition1982 CX500C1982 CM450A
1981 GL500I (wife)
Report 05-06-2008, 6:16 AM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
Anonymous wrote:this thread is what convinced me to get my cx. btw, what forks did you end up using?
stayed with stock cx500 custom forks. if i was doing it over again (and i might do another one) i would use GL1000 or CB750 forks and a spoke front wheel.
Report 05-09-2008, 8:49 AM
SeatSkins
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 04-16-2007
Harrisburg, PA
Posts 179
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Very well done… that settles it! Next CX I get my hands on will be Cafe racer style…Looks like the auction is going well! Very well deserved too!1980 CX500 Deluxe -“Ugly Bob” 1981 CB650 chopper in progress – “Low Budget All-Star”
1983 Harley-Davidson Sportster XLX 1000
Report 05-09-2008, 5:10 PM
Cobram
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 06-23-2007
Boston, MA
Posts 1,551
Re: new cx500 custom owner

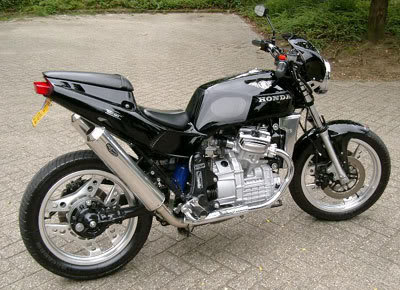

http://2wheelwiki.com/wp-content/uploads/2014/12/ Very nice work. Based on the FleaBay auction and the interest, I’d say you could make a career out of this if you really wanted to. It’s almost impossilbe to get a universal appeal for a custom bike the way this one has, anyone giving it less than a big thumbs up is blind or has no taste. The only one I’ve seen come close was a black 650, (muffler sweep I would change) I can’t recall the site I stole the pic from, or I’d give it credit:
1978 CX500 – I live on a one-way street that’s also a dead end. I’m not sure how I got here, or how I’m going to get out.
Four wheels move the body; Two wheels move the Soul.
Report 05-11-2008, 2:19 PM
tntchitwood
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 03-02-2008
Pine Knot, KY
Posts 511
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Way to go Pampadori. At that price it prob. went to a good home. I hoped it would go that high, we know you put alot of work into it and it was absolutely beautiful. Now……your next project. How bout you save another one from the scrapper….then another……‘82 Silverwing Chopper’02 750 Shadowhttp://choppercharles.com/cs/forums/29599/ShowPost.aspx
Report 05-11-2008, 2:45 PM
pampadori
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 12-15-2007
Roanoke, Va
Posts 43
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/
i’m very happy about how that turned out. now, so long as the winning bidder (feedback rating of 0) pays i’ll be able to fund my xs650 bobber. I’ve got the bike apart and hardtailed, but thats where the money ran out.
i’ve built a few bikes in the past, and aside from a CBR F4i they have been cafe based bikes.
thats my first build and my favorite. she has the hot motor (around 80whp) and all the cool parts.

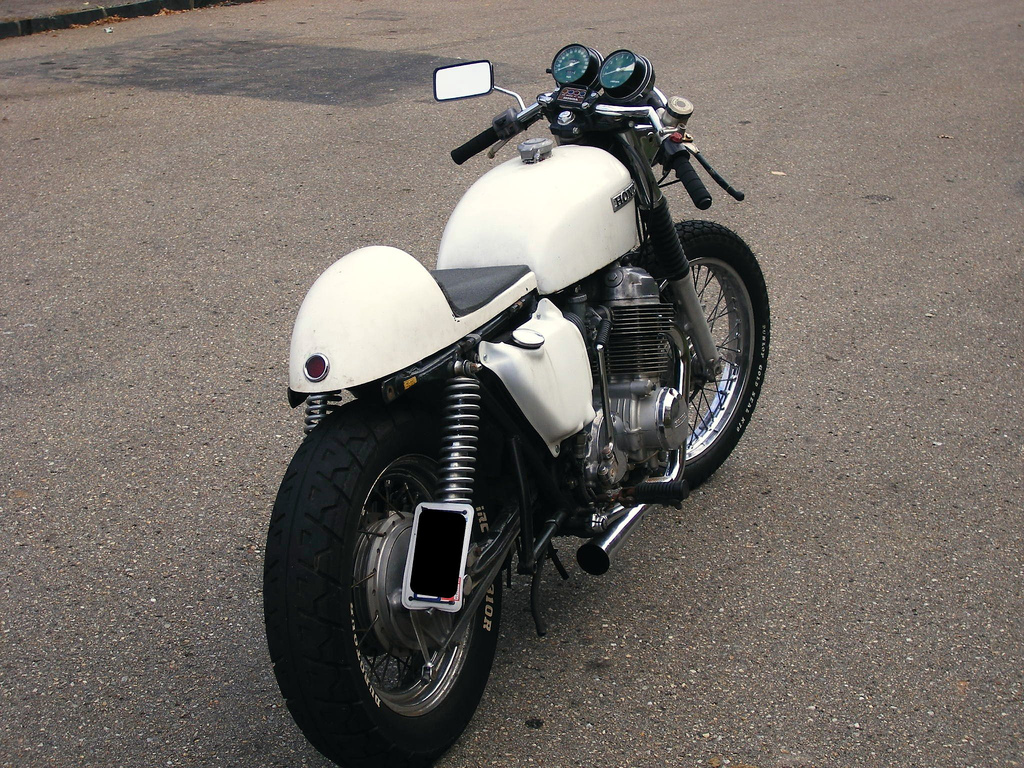

this is my cheapo cb750 that i never wash or have to do anything to. runs great, looks tough and sounds tougher.

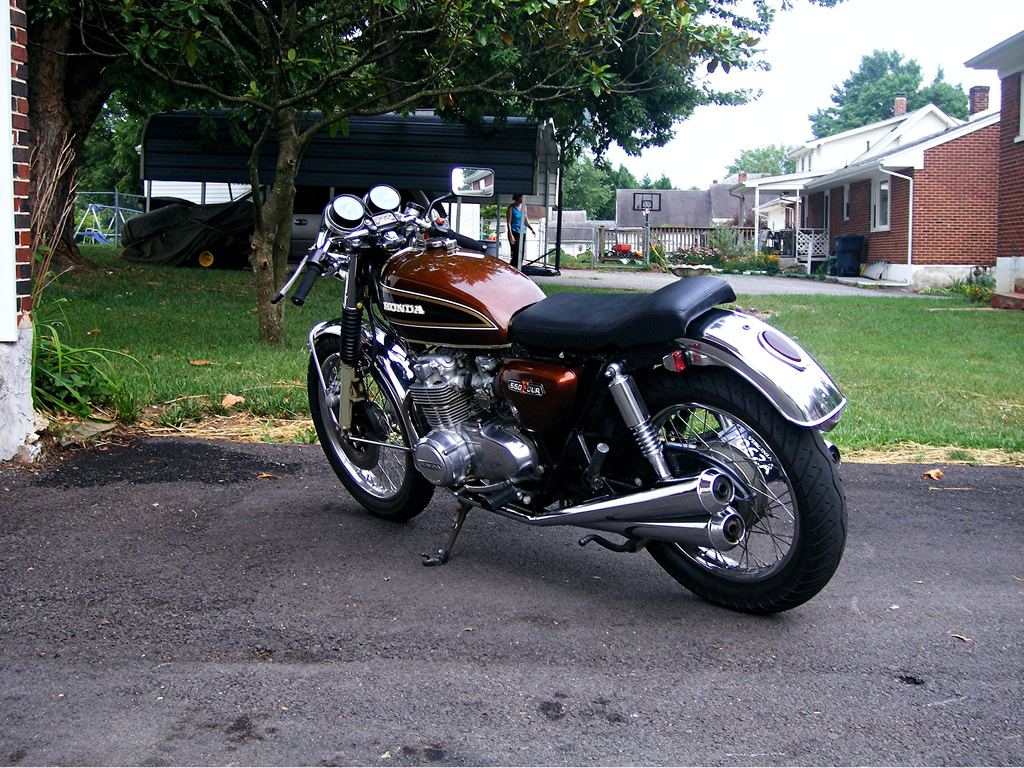

and my old cb550 that i sold to a buddy. this was by far the roughest bike. i spent about 40 hours just cleaning and polishing.
i don’t have pics of the xs650 yet, but soon i’ll post some. frame is about 2 inch stretch and i’ve been looking for a frisco style tank. make a fender and figure out the battery mounting and all that and have a fun bobber for sunday rides.
But thanks for the words. i like that, “save another from the scrapper”.
Shaun
tntchitwood wrote:Way to go Pampadori. At that price it prob. went to a good home. I hoped it would go that high, we know you put alot of work into it and it was absolutely beautiful. Now……your next project. How bout you save another one from the scrapper….then another……
Report 05-11-2008, 5:42 PM
tntchitwood
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 03-02-2008
Pine Knot, KY
Posts 511
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Love the retro look of the bikes. I guess my next build will be a cafe. Hopefully it will be a cx. Don’t know if I could stand those bars though, I am 36 with a bad back, knees and ate up with arthritus, ive suffered every injury known to man. I rode a crotch rocket for about two miles one time, wrists were sore for two days.‘82 Silverwing Chopper’02 750 Shadowhttp://choppercharles.com/cs/forums/29599/ShowPost.aspx
Report 05-11-2008, 7:19 PM
dozer1
http://2wheelwiki.com/wp-content/uploads/2014/12/ Joined on 05-26-2007
Frederick, Maryland
Posts 612
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ Beautiful bikes. You really could make a business out of it.1980 CX500 Ratbike “Stella”1979 CX500 Deluxe(Parts)Dozer1 AKA Snowplow
http://www.youtube.com/watch?v=6TK5VY90ILs&feature=related
Report 05-18-2008, 7:24 AM
fat_fridge
Joined on 09-10-2006
Posts 17
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ sick job man! one thing tho….that last bike i saw on craigslist this morning…
Report 05-18-2008, 7:24 AM
fat_fridge
Joined on 09-10-2006
Posts 17
Re: new cx500 custom owner
http://2wheelwiki.com/wp-content/uploads/2014/12/ http://roanoke.craigslist.org/mcy/684849207.aspx
Report Page 1 of 2 (55 items) 1 2 >
Copyright 1978-2006 Charles E. Smith
